Polyshrink – Tough, Flexible PVC Sleeving
Polyshrink, a low cost, tough flexible PVC heat shrink sleeving available in two types (Polyshrink F105), various colours and diameters has many electrical and mechanical applications.
Polyshrink F105 heat-shrink tube
Ordering Code
Please order by quoting the diameters as supplied and when fully shrunk.
Example — Polyshrink F105 (25-13) blue
Sleeving Applications
- insulate busbars in switchgear
- rope ferrules
- avoid abrasion of hoses and cables

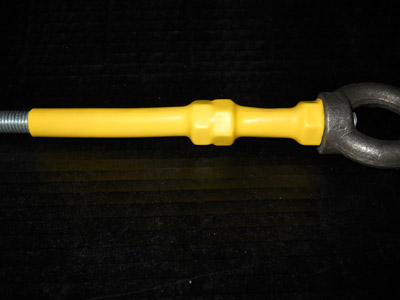

- fixing mechanical parts
- tool handles
- sports equipment
- surface protection & noise reduction of conveyor rollers
Sleeving Properties
| operating temperatures | -20°C to 105°C |
|---|---|
| tensile strength | 20MPa |
| dielectric strength | 25kV/mm |
| shrink temperature | 100°C to 150°C |
Sleeving Sizes
| Internal Diameter | Wall Thickness | ||
|---|---|---|---|
| supplied (min)mm |
recovered (max)mm |
supplied mm |
recovered mm |
| 2.4 | 1.2 | 0.25 | 0.5 |
| 3.2 | 1.6 | 0.25 | 0.5 |
| 4.8 | 2.4 | 0.25 | 0.5 |
| 6.4 | 3.2 | 0.3 | 0.6 |
| 9.5 | 4.8 | 0.3 | 0.6 |
| 13 | 6.5 | 0.3 | 0.6 |
| 19 | 9.5 | 0.4 | 0.8 |
| 25 | 13 | 0.5 | 1.0 |
| 32 | 16 | 0.5 | 1.0 |
| 38 | 22 | 0.6 | 1.1 |
| 51 | 26 | 0.65 | 1.1 |
| 76 | 38 | 0.8 | 1.3 |
| 102 | 51 | 1.0 | 1.7 |
Sleeving Colour Range
Black available ex-stock and most sizes in red, yellow and blue. Some sizes also in white, grey and green.
