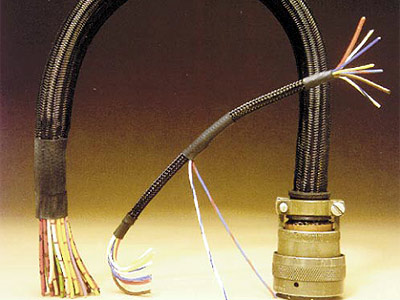

Flexibraid – braided monofilament expandable sleeving
Flexibraid is a braided monofilament with very high flexibility which will easily deform without permanent distortion.
Unlike heat shrink sleevings, Flexibraid is supplied in the unexpanded state. Its diameter is enlarged very quickly by the simple mechanical action of pushing from one end. This allows the component to be introduced and then held securely when the pressure is released.
Sleeving Applications
Flexibraids uses exploit the combination of protection against abrasion and retention of flexibility.
- cable management
- hose protection
- flexible drives
Sleeving Properties
In many applications it is often necessary to use a Quickshrink with narrow diameter. These are difficult to open because the sleeving is rigid. Hayward have resolved this problem with its unique Boxing process. The sleeving is supplied cut to length as specified by the customer and also opened into a four-sided Box shape to provide easy covering.
| operating temperatures | -50°C to 150°C |
|---|---|
| abrasion resistance | very high |
| flexibility | very high |
Sleeving Sizes
| Ordering Code | Layflat / mm | Bundle diameter that can be covered / mm |
|---|---|---|
| HPP4 | 6 | 4 - 7 |
| HPP5 | 7 | 5 - 9 |
| HPP10 | 13 | 10 - 17 |
| HPP15 | 17 | 13 - 22 |
| HPP20 | 20 | 15 - 25 |
| HPP25 | 25 | 25 - 38 |
| HPP40 | 40 | 38 - 50 |
| HPP50 | 60 | 50 - 80 |
Sleeving Colour Range
Available in black or grey.
